VE Head Rotors

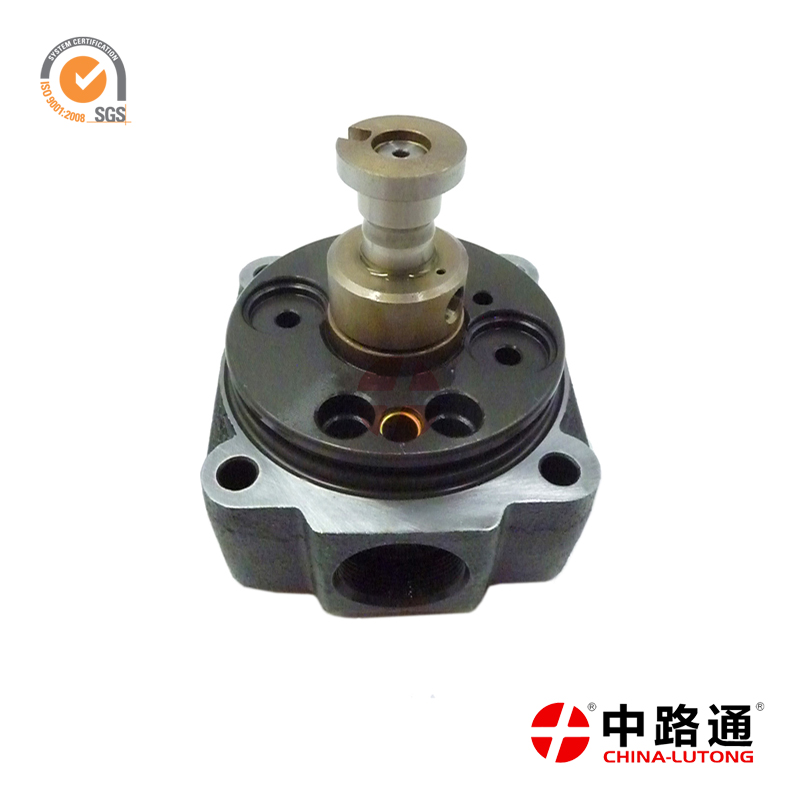

Head rotor 1 468 334 024 for Diesel Fuel Pump 4 Cylinder

1468334024 is one of 4 cylinder in china lutong parts plant.

OEM Number(EH): 1468334024
Stamping Number: 1 468 334 024
Application: ISUZU
Brand Name: Original or Neutral
Warranty Time: One year
Cetification: ISO9001/2000 and TS16949
Min.Order Quantity: 10

high quality ve pump distributor head from china-lutong parts plant



Fuel:Diesel Fuel

Stroke: 4 Stroke
Raw material: Cr12MOV
Processing Technique: Vacuumhardening
Rigidity: HRC62-65
Guarantee time: 180 days

Hs Code:8409 9999.90

China lutong  is manufacter in China in the suppyling and servicing of diesel fuel injection enterprise,our quality is Approved by ISO9001:2008


We are Major in: Diesel Fuel Injection Nozzle, head rotorve distributor head,rotor head,Ve pum parts,We have the world brand equipment, craft, full testing machine, very strong technical force, and we have big lots, more types and high quality production scale, and modernization manager.



What is VE pump?

The purpose of the fuel injection pump is to deliver an exact metered amount of fuel, under high pressure, at the right time to the injector. The injector, unlike in a gasoline engine, injects the fuel directly into the cylinder or a prechamber connected to the cylinder.
The VE in the name of the Bosch pump used in the VW diesels and many other small diesel engines stands for "Verteiler", which is German for distributor or divider. The other common kind of injection pump is the inline pump. The difference between them is that the "Verteiler" VE pump has one fuel metering plunger, and a mechanism (the "Verteiler"/distributor) to send the fuel to the right cylider. The inline pump has one plunger for each cylinder.

Our Main Products:
1.Head Rotor:VE head Rotor(Bosch,Denso,Zexel,Delphi)
2.Fuel Injection Pump:(ISUZU,JMC)
3.Ve Pump Parts:(Feed Pump ,Cam Plate, Drive Shaft,Solenoid Valve,Roller Ring,Oil Seal,etc.)
4.Reparit Kit(VE Pump,Lucas,etc.)
5.Plunger:(Type:A,AD,P,PS7100,P8500,MW,PW,PT,etc.)
6.Nozzle:(Type:DN_SD,DNOPDN,S,SN,P,PN.etc.)
7.Delivery Valve(A,P type etc.)
8.Pencil Nozzle(Ford,John Deer,CAT.)
9.Common Rail Control Valve(621C,622B,625C,C7/C9,etc.)
10.Lucas Head Rotor.(DPA,DPS,DP200)
11.Diesel Fuel Injectors(Bosch,Denso,Delphi)
12.Nozzle Tester,Test Bench.
13.Other Components


Product search by…

… Product category
… Vehicle category
… Suit for

Contact

Sie wünschen persönlichen Kontakt?

Promise of Quality:

TÜV Süd

All processes are managed under the ISO 9001:2008 standard. When it comes to Remanufacturing, even ISO TS 16949 is applied. Quality under hand and seal.

NO. VE head NO. Data Engine Model
1 096400-0143 4/9R ISUZU 4FE1
2 096400-0232 4/10R MITSUBISHI 4D5T
3 096400-0242 4/9R TOYOTA 2C
4 096400-0262 4/12R KOMATSU 4D95L
5 096400-0371 4/10R TOYOTA 2L
6 096400-0432 4/12R TOYOTA 1Z
7 096400-1030 4/9R MITSUBISHI 4D6
8 096400-1060 4/9R TOYOTA 3B
9 096400-1090 4/9R TOYOTA 1DZ
10 096400-1210 6/12R TOYOTA 11Z
11 096400-1220 4/12R KOMATSU 4D95S
12 096400-1230 4/12R TOYOTA 1Z
13 096400-1240 4/12R TOYOTA 14B
14 096400-1250 4/10R TOYOTA 3L
15 096400-1300 4/10R TOYOTA 1DZ
16 096400-1320 6/12R TOYOTA 1HD-T
17 096400-1330 6/10R TOYOTA 1HZ
18 096400-1500 6/10R TOYOTA 1HZ
19 096400-1600 4/11L ISUZU 4JB1
20 096400-1610 4/10L
21 096400-1670 6/12R TOYOTA 3B
22 096400-1680 3/9R TOYOTA
23 096400-1700 6/12R
24 096400-1441 4/12R Toyota 1KZ-TE
25 096400-1480 4/10R Toyota 2L-TE/3CT-E
26 096400-1730 4/10R
27 096400-1740 4/10R
28 096400-1770 4/10R
29 096400-1800 6/12R
30 096400-1950 4/11R NISSAN
31 146400-2220 4/10R MITSUBISHI 4D55
32 146400-4520 4/10R ISUZU 4FC1
33 146400-5521 4/9L ISUZU C223
34 146400-8821 4/9L ISUZU
35 146400-9720 4/10R NISSAN LD20T
36 146401-0221 4/10R MITSUBISHI 4D65
37 146401-0520 4/10R NISSAN AD23
38 146401-1920 4/9L ISUZU C240
39 146401-2120 4/10R NISSAN AD27
40 146401-3020 4/12R KOMATSU
41 146401-3220 4/10R MITSUBISHI 4D56
42 146401-3520 4/10L TD23
43 146401-4220 4/11R NISSAN QD32
44 146401-4420 4/12R DAEWOO
45 146402-0820 4/11R ISUZU 4JB1 4BC2
46 146402-0920 4/11L ISUZU 4JA1 4JB1
47 146402-1420 4/12R ISUZU
