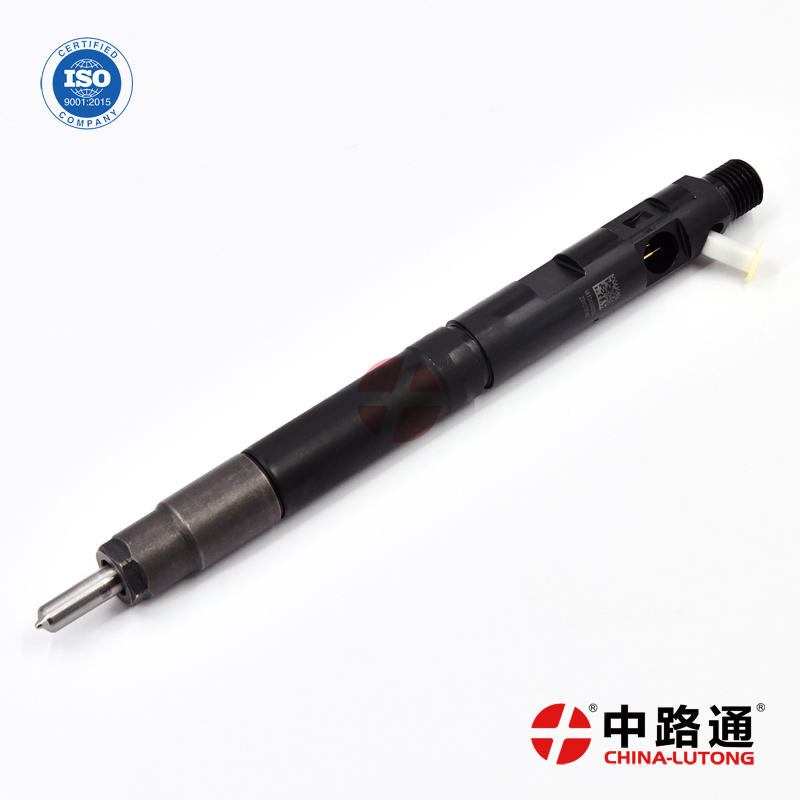

Fuel Injector

#Injector Ejbr 01801A  for  Delphi#

ORDER NUMBER	DESIGNATION	CODE	POSITION	QUANTITY
0 433 171 878	HOLE-TYPE NOZZLE	433171878	1	1
F 00R J01 159	VALVE SET	F00RJ01159	4	1
F 00V C05 001	VALVE BALL	F00VC05001	6	1
F 00V C21 001	BALL-BEARING	F00VC21001	7	1
F 00R J00 656	TENSIONING NUT	F00RJ00656	11	1
F 00R J00 657	VALVE SPRING	F00RJ00657	15	1
F 00V C09 023	NOZZLE SPRING	F00VC09023	17	1
2 433 201 024	STRAIGHT PIN	2433201024	19	2
F 00R J02 219	NOZZLE-RETAINING NUT	F00RJ02219	20	1
F 00R J00 222	O-RING	F00RJ00222	28	1
F 00R J00 534	O-RING	F00RJ00534	32	1
F 00R J00 849	PLUG-IN SOCKET	F00RJ00849	35	1
F 00R C00 139	HEADLESS SETSCREW	F00RC00139	36	1
F 00R C00 556	BALL	F00RC00556	37	1
F 00R J02 175	SEAL RING	F00RJ02175	60	1
F 00R J00 694	ARMATURE	F00RJ00694	71	1
F 00V C40 401	GUIDE BUSHING	F00VC40401	77	1
F 00R J02 537	PROTECTIVE CAP	F00RJ02537	201	1
6 000 610 127	PROTECTIVE CAP	6000610127	601	1
6 000 610 126	PROTECTIVE CAP	6000610126	602	1
F 00R J01 247	INLET CONNECTOR	F00RJ01247	726	1
F 00R J02 176	PARTS SET SEAL RING	F00RJ02176	800	1
F 00R J02 703	PARTS SET MAGNET ASSEMBLY	F00RJ02703	802	1
F 00R J02 636	PARTS SET BODY	F00RJ02636	803	1
F 00R J02 760	SELECTION GROUP SETTING RING	F00RJ02760	804	1
F 00Z C99 174	SELECTION GROUP SHIM	F00ZC99174	805	1
F 00Z C99 173	SELECTION GROUP SETTING RING	F00ZC99173	805	1
F 00Z C99 172	SELECTION GROUP THRUST MEMBER	F00ZC99172	805	1
F 00Z C99 171	SELECTION GROUP THRUST MEMBER	F00ZC99171	805	1
F 00Z C99 170	SELECTION GROUP SHIM	F00ZC99170	805	1
F 00R J02 818	PARTS SET NOZZLE-RETAINING NUT	F00RJ02818	805	1
F 00Z C99 178	SELECTION GROUP SETTING RING	F00ZC99178	805	1
F 00Z C99 177	SELECTION GROUP SETTING RING	F00ZC99177	805	1
F 00Z C99 176	SELECTION GROUP SETTING RING	F00ZC99176	805	1
F 00Z C99 175	SELECTION GROUP LOCKING WASHER	F00ZC99175	805	1
F 00R J01 637	MAGNET TENSIONING NUT	F00RJ01637	843	1
